VC-TCXO Oscillator LVPECL Differential
  VC-TCXO7050PW3.3  3.3V

  • SMD in ceramic case (7.0 x 5.0 x 2.3) mm
  • LVPECL  Square Wave  Output Wave Form
  • Low cost, low jitter
  • RoHS conform; Lead-free product; Tape & Reel
  • Vibration: MIL-STD-202F method 204,
                   35G, 50 to 2000 Hz
  • Shock:     MIL-STD-202F method 213B,
                   test cond. E, 1000GG 1/2 sine wave
  • Available in many standard and special frequencies

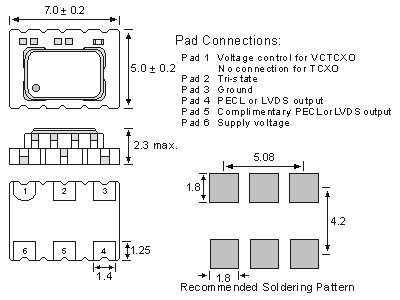

 External Dimensions

 LVPECL Square Wave Output Wave Form
Specifications
Holder Type: VC-TCXO7050PW3.3  3.3V(Voltage code is "3.3"); Tri-State on pad  2
Frequency Range: 10.0 MHz  ~  800 MHz
Freq. Stability vs Temperature: 0° to 50°C (±1.0ppm)  to -40 to +85°C ( ±3.0 to  ± 5.0ppm)
Freq. Stability vs Aging: ± 1.0 ppm, first year at 25°C
Freq. Stability vs Voltage Change: ± 0.3 ppm, for a ± 5% input voltage change
Freq. Stability vs Load Change: ± 0.3 ppm, for a ± 10% load condition change
Current Consumption (max.): 10MHz &le fout &le 25MHz: 65mA (max); 25MHz &le fout &le 100MHz: 85mA (max);
100MHz &le fout &le 800MHz: 115mA (max)
Output Symmetry (Duty Cycle): 50% ± 5% measured at Vdd-1.3V
Output Load: 50 Ohm to Vdd-2.0V / CL = 15pF
Output Logic Levels: High"1"Voh=2.275V(min) Vdd-1.025min.,Condition: RL= 50 Ohm to (Vdd-2.0V)
Low"0"VoL=1.680V(max.) Vdd-1.620max.,Condition: RL= 50 Ohm to (Vdd-2.0V)
Rise/Fall Time: 1.5ns max. @ 20% to 80% of PECL wave form
Start Up Time: 5 ms (typ), 10.0ms (max.) (reach 90% amplitude and at+25°C ±2°C)
Pin 1 Options VCTCXO only: Control Voltage Center, Range: +1.5V ± 1.0V
Frequency Deviation Range:     ±5.0ppm(min.) with Vcon = +1.5V ±1.0V
Linearity:                                 6% typical ; 10% max.
Slope Polarity:         Positive voltage for positivefrequency shift
Tri-state Funct. on Pin2, No Connection: Differential PECL and compliantary PECL outputs
Tri-state Function on Pin 2, Disable: Both outputs are disabled (high impedance) when pad 2 is taken below 0.45*Vcc
referenced to ground (threshold) Oscillator is always On. Only buffer stage is
disabled.  Disable current: 50µA mac. (at 0.0V), Disable time: 10ns (max.)
Tri-state Function on Pin 2, Enable: At disabled mode , both outputs are enabled when Tri-state pad is taken above
0.45 Vcc referenced to ground (threshold);
Enable time: 10ns + one period of the output frequency (max.)
Phase Noise: Offset                   10Hz        100Hz        1kHz           10kHz        100kHz
155.520 MHz  :-65dBc/Hz -95dBc/Hz -120dBc/Hz  -125dBc/Hz   -121dBc/Hz
622.080 MHz  :-55dBc/Hz -85dBc/Hz -109dBc/Hz  -115dBc/Hz   -110dBc/Hz


Phase Jitter (RMS) (12 kHz to 20 MHz): 2.6 ps typ.,  4ps max., for 155.520MHz
Period Jitter (typical): Frequency Range: 38.880MHz     77.760MHz    155.520MHz    622.080MHz
(RMS):                     2.2ps              3.5ps           4.3ps             5.0ps
(Peak to peak) :      17.0ps            25.0ps          27.0ps           32.0ps

Temperature: Storage Temp. -55°C  to  +125°C  /  Reflow Condition 260°C max for 10 sec.
