VC-TCXO-Oscillator SMD   VC-TCXO5032CS2.5   2.5V
  Clipped Sine Wave

  • Voltage Control Temperature Compensated
    Crystal Oscillator
  • SMD in ceramic case  (5.0 x 3.2 x 1.2) mm
    on Tape & Reel
  • Electrical Frequency Tuning (EFC) by external
    Control voltage
  • Clipped Sine Wave Output;
    Wave form code is " CS "
  • RoHS conform; Lead-free product
  • Vibration: MIL-STD-202F method 204,
                   35G, 50 to 2000 Hz
  • Shock:     MIL-STD-202F method 213B,
                   test cond. E, 1000GG 1/2 sine wave
  • Available in many standard and special frequencies
 External Dimensions

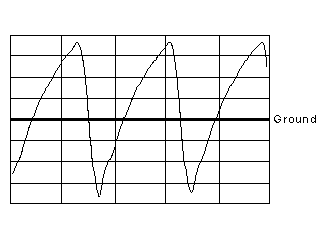

 Clipped Sine Wave Output
Specifications
Holder Type: VC-TCXO5032CS25   2.5V    (Voltage code is " 2.5  " )
Frequency Range: 6.4 MHz to 40.0 MHz
Standard Frequencies (Part list): 10.0, 12.8, 13.0, 14.4, 15.36, 16.384, 19.2, 19.44, 20.0, 25.0, 26.0 MHz
Output Voltage Level (peak to peak): 0.8Vp-p (min.)
Input Voltage: + 2.5V  ± 10%
Frequency Stability: ±0.5ppm to ±3.0ppm
Freq. Stability vs Temperature: 0° to 50°C (±0.5ppm)  to -40 to +85°C ( ±1.0 to  ± 3.0ppm)
Freq. Stability vs Aging: ± 1.0 ppm, first year at 25 °C
Freq. Stability vs Voltage Change: ± 0.2 ppm  max., for a ± 5% input voltage change
Freq. Stability vs Load Change: ± 0.2 ppm max., for a ± 10% load condition change
Freq. Stability vs Reflow (SMD type): ± 0.1 ppm max., 1 reflow and measured 24 hours afterwards
Current Consumption: 9.6 ~15 MHz: 1.5mA max, 15.01 ~ 26.0 MHz: 2.0mA
26.01 ~ 40.0 MHz: 2.5mA
Pin 1  VCTCXO only (EFC): Standard +1.5V ± 1.0V for all input voltages.
Deviation Range:      ±5.0 ppm ( min. ) , Vcontrol = +1.4 V±1.0 V.
Input Impedance:     1MOhm min.; Linearity ±10% max.
Modulation Bandwidth: 3kHz min. Measured at -3 dB
Start Up Time: 2 ms (typ.) ; 5ms (max.) (reach 90% amplitude and at +25°C ± 2°C)
Output Load: 10kOhm // 10pF   ± 10%
Phase Noise (13MHz as example):   -80dBc/Hz at     10Hz    offset,  -115dBc/Hz at    100Hz   offset
-135dBc/Hz at      1kHz   offset,   -148dBc/Hz at    10kHz   offset
-148dBc/Hz at   100kHz   offset
Storage Temperature: -40°C to +85°C or -55 to +125°C (Package dependent)
Reflow Condition: 260°C max. for 10 sec.
