Differential LVDS Clock Oscillator
  CXO2520DK2.5,  2.5V, 0.2 psec Jitter,non PLL

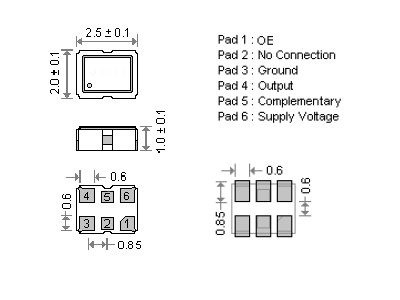

  • SMD in ceramic case (2.5 x 2.0 x 1.0) mm
  • Tri-State Enable / Disable   on pad No. 1
  • Femto second integrated phase jitter
    (300 fs typical, 12 KHz to 20 MHz)
  • Superior phase noise (-138 dBc/Hz at 10 KHz and
     -142 dBc/Hz at 100 KHz offset)
  • RoHS conform;  Lead-free product;
    on Tape (16mm) & Reel
  • Vibration: MIL-STD-202F method 204,
                   35G, 50 to 2000 Hz
  • Shock:     MIL-STD-202F method 213B,
                   test cond. E, 1000GG 1/2 sine wave
  • High performance with surprisingly low price
 Differential LVDS Clock Oscillator CXO2520DK2.5

 LVDS Square Wave Output Wave Form
Specifications
Holder Type: CXO2520DK2.5;  2.5V(Voltage code is "2.5"); Tri-State on pad 1
Frequency Range: 13.500 MHz  ~  220.000 MHz
Frequency Stability at 25°C: ±20 to ±100 ppm
Operating Temperature Range: -20°C to +70°C,   -40°C to +85°C
Storage Temperature: -55°C  to  +150°C
Power Supply Voltage (Vdd): + 2.5V  D.C.    ± 5%
Maximum Supply Current (15pF load): 16mA typical   27mA max.
Output Logic Levels: High "1" 1.43V typical; 1.6V max, RL=100 ohms.;
Low  "0" 1.1V typical; 0.9V min;  RL=100 ohms
Output Voltage Swing: 250 mV min; 350 mV typical; 450 mV max. RL=100Ohm
Output Symmetry (Duty Cycle): 50% ± 5%max. measured at 50% waveform
Load: RL=100 ohms between output and complimentary output
Rise/Fall Time: Tr = 0.3 ns. typ; 0.5 ns. max. 20% -> 80% of waveform
Tf = 0.2 ns. typ; 0.4 ns. max. 80% -> 20% of waveform
Start Up Time: 5 ms typical; 10 ms max.
Tri-state Function  Pin 1: Enable  ll When 70% min. of VDD to Enable Output. Enable time : 10 ms max.
Disable ll When 30% max. of VDD to Disable Output.
Disable current : 10 µA max. , Disable time : 0.2 µs max.
Phase Jitter (12 kHz to 20 MHz): 0.2 ps typical,  0.5 ps (max.), for 156.250 MHz, 3.3V
Phase Noise (156.250 MHz):   -50dBc/Hz @ 10Hz,    -80dBc/Hz @ 100Hz,     -115dBc/Hz @ 1kHz
-135dBc/Hz @ 10kHz, -142dBc/Hz @ 100kHz, -147dBc/Hz @ 1MHz,
-152dBc/Hz @ 10MHz
Aging: ± 3 ppm max. first year ; ± 2 ppm max. per year thereafter
Reflow Condition: 260°C max for 10 sec.
