Clock Oscillator Differential CXP7050PJF3.3
  LVPECL  3.3V; ultra low jitter,  with PLL

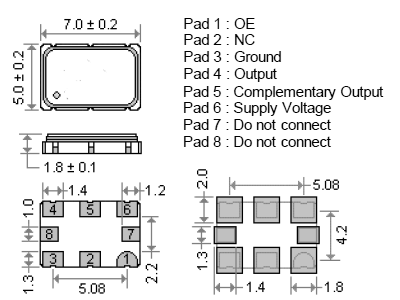

  • SMD in ceramic case (7.0 x 5.0 x 1.8) mm
  • Tri-State Enable / Disable   on pad No. 1
  • LVPECL  Differential Output Wave Form
  • High Q fundamental crystal + ultra low jitter
    multiplier circuit
  • RoHS conform;  Lead-free product;
    on Tape (16mm) & Reel
  • Vibration: MIL-STD-202F method 204,
                   35G, 50 to 2000 Hz
  • Shock:     MIL-STD-202F method 213B,
                   test cond. E, 1000GG 1/2 sine wave
  • Available in many standard and special frequencies
 Clock Oscillator Differential CXP7050PJF3.3

 LVPECL Square Wave Output Wave Form
Specifications - Product No. G300000000CTCUPN43BA
Holder Type: Clock Oscillator CXP7050PJF3.3   ; 3.3V(Voltage code is "3.3"); Tri-State on pad 1
Frequency: 300.000000 MHz
Frequency Stability at 25°C: ± 50.0 ppm
Operating Temperature Range: ± 50.0 ppm  -40°C  to  +85°C
Output Logic Levels: High "1" Voh  Vdd-1.025min., Termination: RL= 50 Ohm to (Vdd-2.0V)
Low  "0" VoL  Vdd-1.620max., Termination: RL= 50 Ohm to (Vdd-2.0V)
Storage Temperature: -55°C  to  +125°C
Power Supply Voltage (Vdd): + 3.3V  D.C.    ± 10%
Maximum Supply Current (Differential): 100.0 mA max.
Current with Output Disabled: 99 mA typical
Output Voltage (VOH) (VOL): High "1" Vdd-1.165V min,  Vdd- 0.8Vmax.
Low  "0" Vdd-2.0V min,  Vdd- 1.55Vmax.
Tri-state Function  Pin 1 (or 2): When Pin 1 (or 2)  = 1,      Output Enable
When Pin 1 (or 2) (at 0.0V), Output High impedance, Disable current: 50µA max.
Start Up Time: 5ms typical;10 ms max.
Period Jitter,  RMS, peak to peak: (decoupling capacitor between Vdd and GND)  for 155.520 MHz
RMS: 3ps typ., 5ps max;     peak to peak: 20ps typ; 30ps max.
Output Symmetry (Duty Cycle): 50% ± 5%max. (measured at 50% Vdd)
Load: 50 ohms into Vdd -2V or Thevenin equiv.
Input Static Discharge Protection: 2 kV (min.)
Rise (Tr) /Fall Time (Tf): 0.35ns typical; 0.5ns max.  (20%Vdd<->80%Vdd, 15pF load)
Phase Jitter: 0.15 ps typ.  (12 kHz to 20 MHz); < 100 fs (1.875 MHz to 20MHz)
Phase Noise (156.250 MHz):   -67dBc/Hz @ 10Hz,    -92dBc/Hz @ 100Hz,   -112dBc/Hz @ 1kHz
-121dBc/Hz @ 10kHz, -124dBc/Hz @ 100kHz, -136dBc/Hz @ 1MHz,
-153dBc/Hz @ 5MHz
Aging: < ±2ppm max. for the first year; ±10ppm max.over 10 years
Reflow Condition: 260°C max for 10 sec.
