Quartz Crystal Unit   CM1210-2pad
  • SMD in ceramic case (1.2 x 1.0 x 0.50) mm
  • The whole package is grounded via the top
     metal lid and the two bottom pads.
  • on Tape & Reel
  • RoHS conform;   Lead-free product

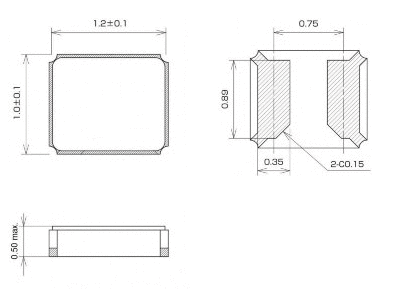

 External Dimensions

 Soldering Conditions
Specifications
Holder Type: CM1210-2pad
Frequency Range: 32.768000 kHz
Frequency Stability at 25°C: ±5 to ±50 ppm
Temperature Stability: ±20ppm  @ -40°C to +85°C
Storage Temperature: -40°C  to  +85°C
Drive Level: 0.1µW ( < 0.5µW max.)
Temperature coefficient: min.- 0.02, typ -0.03, max.-0.04 ppm/°C²
Load Capacitance (CL): 12,5pF
Equivalent Series Resistance: 90 kOhm  max.
Aging: @ +25°C ±3°C < ±3ppm max.
Germany:   COMTEC CRYSTALS GmbH
Sultenstr. 12-14  ·  85586 Poing / GERMANY
Tel +49 8121 778160 · Fax +49 8121 778177
e-Mail     info@comtec-crystals.com
Internet  http://www.comtec-crystals.com
Subject to change without prior notice
