Quartz Crystal Unit   CM2012-2pad
  • SMD in ceramic case (2.0 x 1.2 x 0.6) mm
  • Available in many standard and special frequencies
  • on Tape & Reel
  • RoHS conform;   Lead-free product

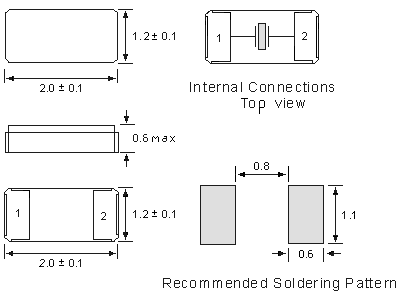

 External Dimensions

 XY-CUT
Specifications - Product No. A000032768BNFAPN43EE
Holder Type:  CM2012-2pad
Frequency: 32.768000 kHz
Frequency Stability at 25°C: ±20 ppm
Temperature Stability: ±20 ppm  @  -40°C  to  +85°C
Storage Temperature: -50°C  to  +105°C
Drive Level: 1.0µW max.
Temperature coefficient (beta): -0.034ppm/° C^2, typical
Load Capacitance (CL): 12.5 pF
Shunt Capacitance (C0): 1.3 pF, typical
Equivalent Series Resistance: 90kOhm max.
Aging: < ±5ppm max. / year (max.)
Reflow Condition: 10 sec.max. at +250°C  ±10°C
