| Specifications - Product No. G010000000BLQUPN1AHA |
| Holder Type: |

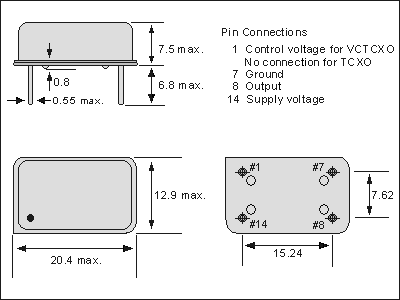

TCXO-14T5.0 5.0V (Voltage code is " 5.0 " ) |
| Frequency: |
10.000000 MHz |
| Input Voltage: |
+ 5.0V ± 10% |
| Frequency Stability: |
± 5.0 ppm at 25°C |
| Freq. Stability vs Temperature: |
± 5.0 ppm over ±0°C to +50°C (incusive of 25°C tolerance,
±10% input voltage variation, load change, aging, shock and vibration ) |
| Freq. Stability vs Aging: |
± 1.0 ppm, first year at 25 °C |
| Freq. Stability vs Voltage Change: |
± 0.3 ppm, for a ± 5% input voltage change |
| Freq. Stability vs Load Change: |
± 0.3 ppm, for a ± 10% load condition change |
| Operating Temperature Range: |
±0°C to +50°C |
| Maximum Supply Current: |
7.0 mA max. |
| Output Load: |
15pF |
| Output Logic Levels: |
Logic High "1" : 2.4Vmin. (TTL), 90% Vdd min. (CMOS)
Logic Low "1" : 0.4Vmin. (TTL), 10% Vdd min. (CMOS) |
| Output Symmetry (Duty Cycle): |
40/60% ; Measured at 50% Vdd |
| Rise/Fall Time CMOS: |
Tr: 1.4ns (max.) Tf: 2.0ns (typ.) Measured between 20% and 80% Vdd
of the wave form (CL = 15pF) |
| Start Up Time: |
10 ms (max.); 5ms (typ.) |
| Storage Temperature: |
-55 to +105°C |
| Reflow Condition: |
260°C max. for 10 sec. |
