| Specifications |

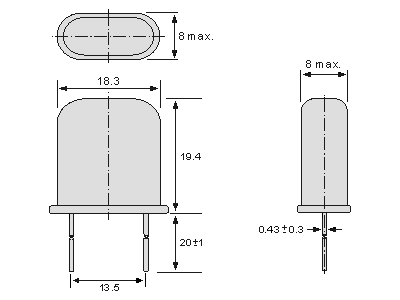

| Holder Type: |
HC33U/HC51U |
| Frequency Range: |
0.800 to 35.000 MHz (fun.)
15.000 to 100.000 MHz (3rd)
45.000 to 160.000 MHz (5th)
100.000 to 210.000 MHz (7th)
140.000 to 250.000 MHz (9th) |
| Frequency Stability at 25°C: |
±5 to ±50 ppm |
| Temperature Stability: |
±5 to ±30 ppm @ -10°C to +60°C
±10 to ±30 ppm @ -20°C to +70°C
±15 to ±50 ppm @ -40°C to +85°C
±55 to ±50 ppm @ -55°C to +125°C |
| Storage Temperature: |
-50°C to +125°C |
| Drive Level: |
100µW (500µW max.) |
| Load Capacitance (CL): |
10pF to 60pF, series (00) |
| Shunt Capacitance (C0): |
< 7pF |
| Crystal Cut & Vibration Mode: |
AT-cut, fundamental; - 3rd, 5th, 7th, 9th overtone |
| Equivalent Series Resistance: |
R = 15 Ohm (fun.) - 3000 Ohm max. |
| Aging: |
< ±3ppm max. / year (max.) |
